The electric arc flash hazard from alternating-current (AC) 3-phase (3Φ) power systems has been well documented due to the research by many scientists and the introduction of IEEE 1584 Guide for Arc Flash Hazard Calculations. The majority of arc flash calculation studies performed today are based on the IEEE 1584 methods although the standards and procedures for the selection of PPE continue to evolve. Yet the arc flash hazard is not limited solely to AC 3Φ power systems. A notable hazard can also exist within single-phase (1Φ) systems, however AC 1Φ arc flash equations and calculation methods are not yet part of any standard. IEEE 1584 argued that three-phase arcs produce the greatest possible arc-flash hazard in AC equipment. Hence all testing used in the IEEE 1584 empirical model was three-phase testing and, at this time, there is no single-phase model equation in the IEEE 1584. As a matter of fact, for single phase arc flash analysis, IEEE 1584 is endorsing a very conservative theoretical model developed by Ralph Lee ^{[1]} back in 80th for 3Φ systems. In many cases, the model estimates the incident energy exposure level number of times more than the IEEE 1584 empirical model predicts for the identical system setup and available fault currents. As a consequence, excessive PPE is recommended creating a dangerous situation due to limited mobility and visibility. The paper proposes a comprehensive method for addressing 1Φ arc flash calculations that may be considered at least until an official standard for single-phase arc flash calculations has been released.

Votage drop *Varc* across the equivalent arc resistance which is introduced by the arc plasma in typical AC circuit depicted on Figure 1 can be expressed as:

where *I* is current in Amps, *Vs* stands for an open source voltage in Volts, *Rs* and *Xs* are system resistance and reactance respectively, including source and feeders.

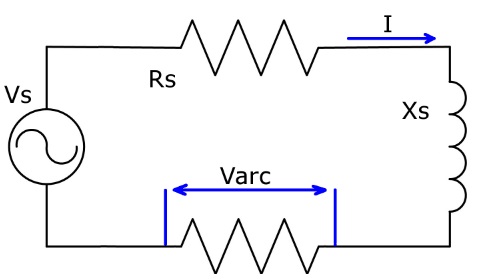

*Figure 1. Single & three phase AC arc flash equivalent circuit.*

It was demonstrated that there is a minimum voltage needed to maintain an arc. That minimum depends on the current magnitude, gap width, and orientation of the electrodes. This transitional point can be calculated by ^{[2]}:

where

*G* - conductor gap distance in millimeters

*It* - the transitional point current measured in amperes

Above that minimum, the arc V-I characteristic can be expressed as ^{[2]}:

or alternatively as:

where

*Varc* - arcing voltage in Volts

*Iarc* - arcing current in Amps

Equations (1) through (3) can be solved for the maximum conductor gap where the arc can likely be sustained under the specified system voltage, the equivalent source X/R ratio and available short circuit fault current.

To find the point where the arc V-I characteristic crosses the circuit load line, solve equations (1) and (4) using the iterative method. As the first approximation, assume *Iarc* is equal to half of the available short circuit fault current. Then, follow the steps below:

- determine
*Varc*from equation (1) - substitute
*Varc*into equation (4) to determine new*Iarc*

Cycle through the steps 1 and 2 above until the answers for *Varc* converge.

Table 1 shows arcing current values measured by two laboratories^{[3]} along with accompanying system parameters, and the current values calculated solving equations 1 through 4 using the same parameters. Calculated arcing current values ^{[6]} nearly match the actual test data. The calculations have been performed using ARCMASTER V1.0 software program.

Test | Line Voltage, V | Bolted Fault Current, A | Fault P.F., % | Gap, in. | Measured Arcing Current, A | Calculated Arcing Current, A | Variation, % |
---|---|---|---|---|---|---|---|

TI-4 | 276 | 996 | 7.9 | 1 | 900 | 940 | 4% |

TI-7 | 277 | 980 | Low | 1/2 | 900 | 900 | 0% |

TI-8a | 120 | 940 | Low | 1/2 | 750 | 750 | 0% |

TI-9 | 146 | 1150 | Low | 1/2 | 1000 | 990 | 1% |

TI-12 | 278 | 650 | 41.8 | 1/2 | 600 | 590 | 2% |

TII-6 | 263 | 2910 | 44 | 1 | 2570 | 2390 | 3% |

TII-8 | 263 | 7400 | 44 | 1 | 6000 | 5830 | 3% |

TII-9 | 263 | 10580 | 40 | 1 | 8450 | 8360 | 1% |

TII-15 | 263 | 25000 | 22 | 2-1/4 | 16600 | 16590 | 0% |

TII-19 | 263 | 41600 | 22 | 3-1/4 | 20640 | 19530 | 5% |

The energy released during an arc flash event is roughly proportional to the arc duration. The upstream protective device operation controls the arc flash duration. A fuse or properly maintained over-current protection device has a predictable time to open the circuit with a specific arc current value. Hence, arcing current impacts the released energy directly through the current itself and through interaction with the protection device.

The power in the arc can be calculated by:

where the *Parc* is measured in watts.

The energy in the arc is a function of power and time:

where the *Earc* is measured in Joules.

Incident energy exposure for an open-air arc where the heat transfer depends on the spherical energy density is then expressed as:

where

*Eiair* - incident energy from an open air arc at distance *D* in Joules/cm^{2}

*D* - distance from the arc in centimeters

This formula assumes the radiant heat transfer. Not all of the arc energy will be transferred as radiant heat as a portion of the energy is transformed into pressure rise and in heat conducted to the electrode material. Therefore, the equation (9) will produce a conservative but safe estimate of incident energy exposure.

For the arc in a box, the enclosure has a focusing effect on the incident energy. For the selected enclosure type and test distance, the incident energy from an arc flash in a box can be calculated by ^{[4]}:

where

*Eibox* - the incident energy from an arc flash in a box in Joules/cm^{2}

*D* - distance from the arc in centimeters

*A* and *K* are obtained from optimal values listed in table below:

Enclosure Type | A, cm | K |
---|---|---|

Panelboard | 10 | 0.127 |

LV Switchgear | 40 | 0.312 |

MV Switchgear | 95 | 0.416 |

Equation (9) written in terms of arc flash boundary, becomes:

where

*AFB* - arc flash boundary measured in centimeters

*Et* - threshold incident energy to second degree burn in J/cm^{2} calculated by ^{[5, 7]}:

where *t* stands for exposure time in seconds.

Likewise, equation (10) written in terms of arc flash boundary, becomes:

A semi-empirical model of single phase arc flash hazard has been developed. The maximum conductor gap where the arc can likely be sustained under the specified system voltage, the equivalent source X/R ratio and available short circuit fault current was derived from the analytical expressions for the transitional point current, AC arc flash non-linear load line and the arc V-I characteristic. Arcing current has been determined iteratively using the arc V-I characteristic and load line. The calculated arcing current values are very close to the actual test data. Wilkins optimal values were applied in determining the incident energy for arc in a box and the arc flash boundary was calculated based on the variable threshold incident energy to second degree burn. The proposed model assumes all the energy generated by an arc is converted into the radiated heat resulting in conservative but safe estimate of arc flash boundary. One day single-phase AC arc flash calculations will be part of an official standard but until then this is one method for addressing single-phase AC arc flash calculations.
